Reach Stacker Container Handler

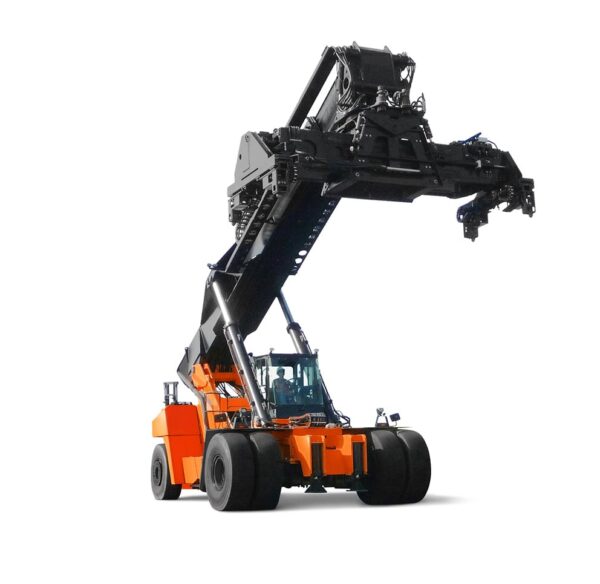

The Toyota Reach Stacker can handle a diverse range of heavy-lift applications, from loading and unloading trailers to transporting wind turbine components. The THD9900-R90 also offers front stabilizers for second and third rail operations. Twistlock camera systems, trailer leg modules, and rear container guides are also available for handling your specific application’s needs. Toyota continues to keep its promises to offer unmatched operator visibility and ergonomic features that provide more safety, more comfort, and more productivity.

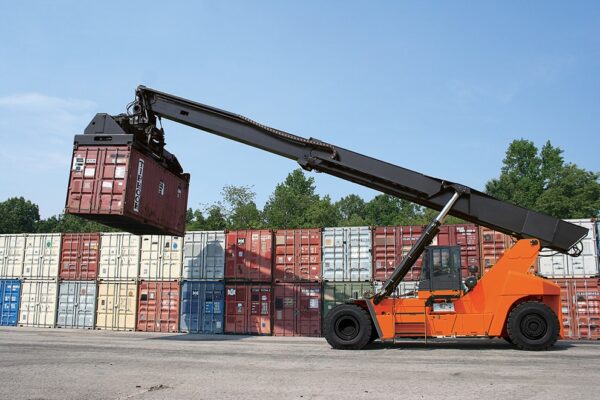

The Toyota Reach Stacker Container Handler can stack up to 5 containers high with depth up to 3 rows. With a single double acting steer cylinder is housed within the steer axle beam for increased protection. While the standard damage prevention system utilizes ultrasonic sensors to decrease container damage and increase attachment longevity. In addition, the shackle points allow usage of reach stacker as a crane, providing more versatility for a wide range of applications.
- Up to 275 inches Wheelbase
- 78 inches Load Center
- CUMMINS 6-CYL Diesel Engine
- High stacking capacity up to five 9’ 6” containers with a stacking depth of 3 rows
- Inclination and optical distance sensors locate precise position of containers for safety interlocks
- Double acting cylinder for smooth, precise control
- Standard damage prevention system utilizes ultrasonic sensors to decrease container damage and increase attachment longevity
- Shackle points allow usage of the Reach Stacker as a crane, providing more versatility for additional applications
- 4-point top pick loaded container attachment with automatic locking vertical twistlocks; extends/retracts to handle 8-foot ISO containers from 20- to 53-feet long
- Attachment rotates 185° in one direction and 95° in the opposite direction for a wider range of movement and added productivity
- High-load composite side thrust bearings
- Multiple service and work lights for late night or early morning operation
- Automatic pendulum-floating twistlocks with override function and an integral carriage with +/- 30-inch side shift; +/- 5° hydraulic tilt
- Rugged chassis, boom and attachment structure designed for well over a million cycles of usage
Specifications
| MODEL NUMBER | LOAD CAPACITY* (LBS.) | MAX. TRAVEL SPEED FULL LOAD (MPH) | MAX. LIFT SPEED FULL LOAD (FPM) | MAX. GRADEABILITY FULL LOAD (%) | BASIC RIGHT ANGLE STACK** (IN.) |
|---|---|---|---|---|---|
| THD9900-R60 | 99,000 (1st row) / 60,000 (2nd row) / 30,000 (3rd row) | 19.3 | 60 | 18.2 | 480 (20' cont.) / 565 (40' cont.) |
| THD9900-R68 | 99,000 (1st row) / 68,000 (2nd row) / 34,000 (3rd row) | 19.3 | 60 | 17.5 | 480 (20' cont.) / 565 (40' cont.) |
| THD9900-R73 | 99,000 (1st row) / 72,600 (2nd row) / 38,500 (3rd row) | 19.3 | 60 | 17.2 | 480 (20' cont.) / 565 (40' cont.) |
| THD9900-R77 | 99,000 (1st row) / 77,000 (2nd row) / 44,000 (3rd row) | 19.3 | 60 | 16.9 | 480 (20' cont.) / 565 (40' cont.) |
| THD9900-R85 | 99,000 (1st row) / 85,000 (2nd row) / 47,000 (3rd row) | 20.1 | 60 | 15.8 | 508 (20' cont.) / 586 (40' cont.) |
| THD9900-R90 | 99,000 (1st row) / 90,000 (2nd row) / 68,000 (3rd row) | 20.1 | 60 | 15.6 | 508 (20' cont.) / 586 (40' cont.) |
* Based on 78″ Load center
** Add load length and clearance
Details of specifications and equipment may change without notice.
Performance
- Cummins® 8.9 liter, 6-cylinder Tier 4 diesel engine
- Pivoting attachment with 4 ISO twistlocks
- High-load composite side thrust bearings
- Boom-mounted twistlock indicator light
- Force-cooled wet disc brakes
- Axletech® planetary drive axle rated for durability in high-capacity, off-road applications
- Heavy-duty, welded steer axle
- Rigidly constructed welded frame
- Engine protection system
- High-capacity cooling system
Ergonomics
- Single multifunction joystick control handle
- Dashless cab design for improved visibility
- LED headlights
- Stairway lighting
- Tilt steering column
- Left hand directional shift lever
- Adjustable air-ride seat with retractable seat belts and adjustable armrests
Safety
- Electric horn
- Asbestos free components
- Neutral safety switch
- Integrated overhead guard
- Operator restraint system (ORS) seat
- Operator presence sensing system (OPSS)
Ease of Service
- Electronic engine diagnostics with fault code history
- Easy-access filters
- Hydraulic multi-gauge
- Externally serviceable brakes

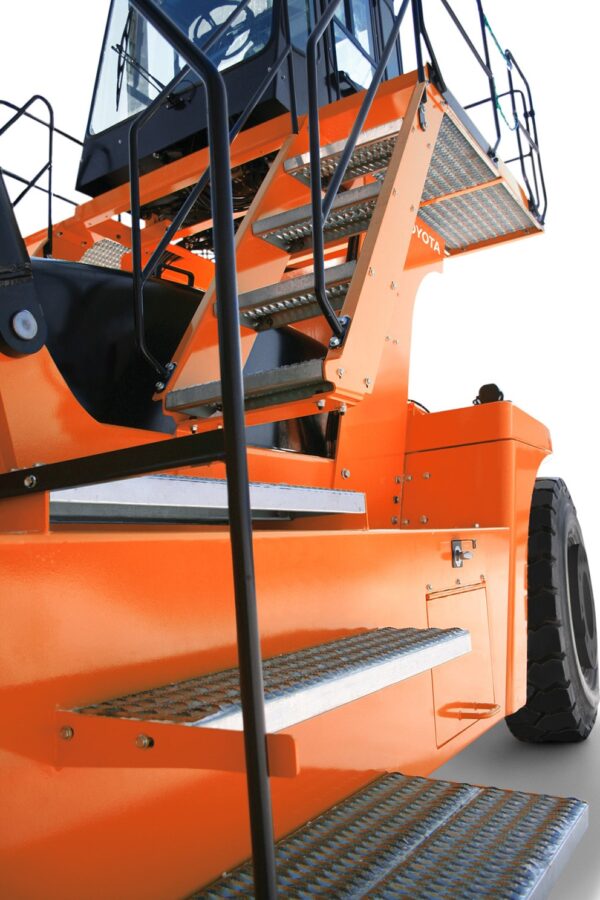

- Bolt-on tanks, counterweights, cab super-structure and stairways (removable)
- External attachment spreader cylinders
- Powertrain access panels with quick-release latches
Optional Equipment
- Precleaner
- Mechanical or hydraulic pile slopes
- Open cab (less doors, glass, wipers, heat)
- Air conditioning
Contact Toyota Material Handling Solutions for a complete list of optional equipment; and compatibility conditions and restrictions.
| MODEL NUMBER | LOAD CAPACITY* (LBS.) | MAX. TRAVEL SPEED FULL LOAD (MPH) | MAX. LIFT SPEED FULL LOAD (FPM) | MAX. GRADEABILITY FULL LOAD (%) | BASIC RIGHT ANGLE STACK** (IN.) |
|---|---|---|---|---|---|
| THD9900-R60 | 99,000 (1st row) / 60,000 (2nd row) / 30,000 (3rd row) | 19.3 | 60 | 18.2 | 480 (20' cont.) / 565 (40' cont.) |
| THD9900-R68 | 99,000 (1st row) / 68,000 (2nd row) / 34,000 (3rd row) | 19.3 | 60 | 17.5 | 480 (20' cont.) / 565 (40' cont.) |
| THD9900-R73 | 99,000 (1st row) / 72,600 (2nd row) / 38,500 (3rd row) | 19.3 | 60 | 17.2 | 480 (20' cont.) / 565 (40' cont.) |
| THD9900-R77 | 99,000 (1st row) / 77,000 (2nd row) / 44,000 (3rd row) | 19.3 | 60 | 16.9 | 480 (20' cont.) / 565 (40' cont.) |
| THD9900-R85 | 99,000 (1st row) / 85,000 (2nd row) / 47,000 (3rd row) | 20.1 | 60 | 15.8 | 508 (20' cont.) / 586 (40' cont.) |
| THD9900-R90 | 99,000 (1st row) / 90,000 (2nd row) / 68,000 (3rd row) | 20.1 | 60 | 15.6 | 508 (20' cont.) / 586 (40' cont.) |
* Based on 78″ Load center
** Add load length and clearance
Details of specifications and equipment may change without notice.
- Cummins® 8.9 liter, 6-cylinder Tier 4 diesel engine
- Pivoting attachment with 4 ISO twistlocks
- High-load composite side thrust bearings
- Boom-mounted twistlock indicator light
- Force-cooled wet disc brakes
- Axletech® planetary drive axle rated for durability in high-capacity, off-road applications
- Heavy-duty, welded steer axle
- Rigidly constructed welded frame
- Engine protection system
- High-capacity cooling system
- Single multifunction joystick control handle
- Dashless cab design for improved visibility
- LED headlights
- Stairway lighting
- Tilt steering column
- Left hand directional shift lever
- Adjustable air-ride seat with retractable seat belts and adjustable armrests
- Electric horn
- Asbestos free components
- Neutral safety switch
- Integrated overhead guard
- Operator restraint system (ORS) seat
- Operator presence sensing system (OPSS)
- Electronic engine diagnostics with fault code history
- Easy-access filters
- Hydraulic multi-gauge
- Externally serviceable brakes
- Bolt-on tanks, counterweights, cab super-structure and stairways (removable)
- External attachment spreader cylinders
- Powertrain access panels with quick-release latches
- Precleaner
- Mechanical or hydraulic pile slopes
- Open cab (less doors, glass, wipers, heat)
- Air conditioning
Contact Toyota Material Handling Solutions for a complete list of optional equipment; and compatibility conditions and restrictions.
Download the Reach Stacker brochure
With 50-ton capacity, the Toyota Reach Stacker is a container stacking champion for the intermodal/port and shipping container industries. Download the Reach Stacker brochure to read how it can help improve your uptime and increase profitability, 50 tons at a time.
