JLG AM Series Push-Around Vertical Lifts
The AM Series (AccessMaster®) is easily portable, offers up to 350 lb. platform capacity and is ideal for many uses, including industrial, maintenance, entertainment and institutional. Platform heights range from 19 ft to 41 ft allowing work to be done up to 47 ft. In addition, this unit features a narrow chassis to give you access in confined work areas along with longer battery cycles.
- Low-maintenance anodized aluminum mast
- 110-volt double receptacle in platform
- Lanyard attachment anchor for body harness
- Non-marking tires
- Quick-change platform mounts
- Quick-change 26-inch W x 28-inch L gull-wing entry platform
- Roller loading device for loading on pick-up trucks
- Overall base width of 29.5
Specifications
| MODEL NUMBER | PLATFORM HEIGHT (IN.) | PLATFORM CAPACITY (LBS.) | OVERAL HEIGHT STOWED (IN.) | OVERALL LENGTH STOWED (IN.) | OUTRIGGER FOOTPRINT L X W (IN.) | WEIGHT AC/DC (LBS.) |
|---|---|---|---|---|---|---|
| 20AM | 240 | 350 | 78 | 55 | 62 x 54.5 | 740/860 |
| 25AM | 298 | 350 | 78 | 57 | 62 x 54.5 | 825/905 |
| 30AM | 355 | 350 | 78 | 57 | 75 x 72 | 890/940 |
| 36AM | 432 | 350 | 104.5 | 58 | 79.5 x 79.5 | 1060/1160 |
| 41AM | 485 | 350 | 104.5 | 60.5 | 80.5 x 86 | 1100/1230 |
Download the JLG Vertical Lifts Brochure

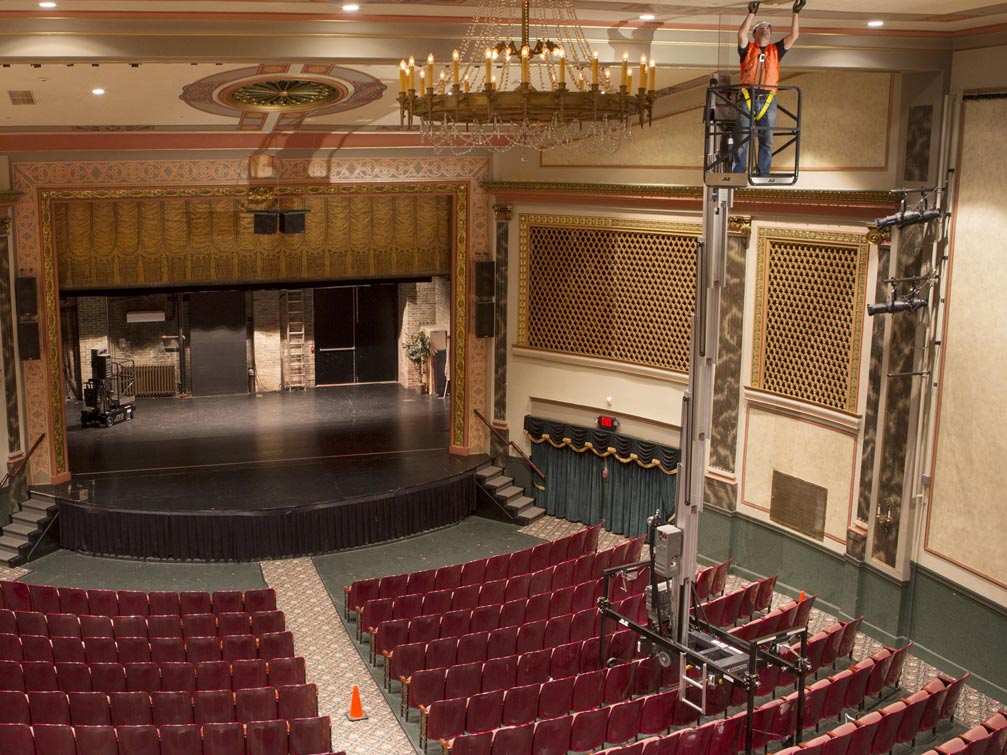

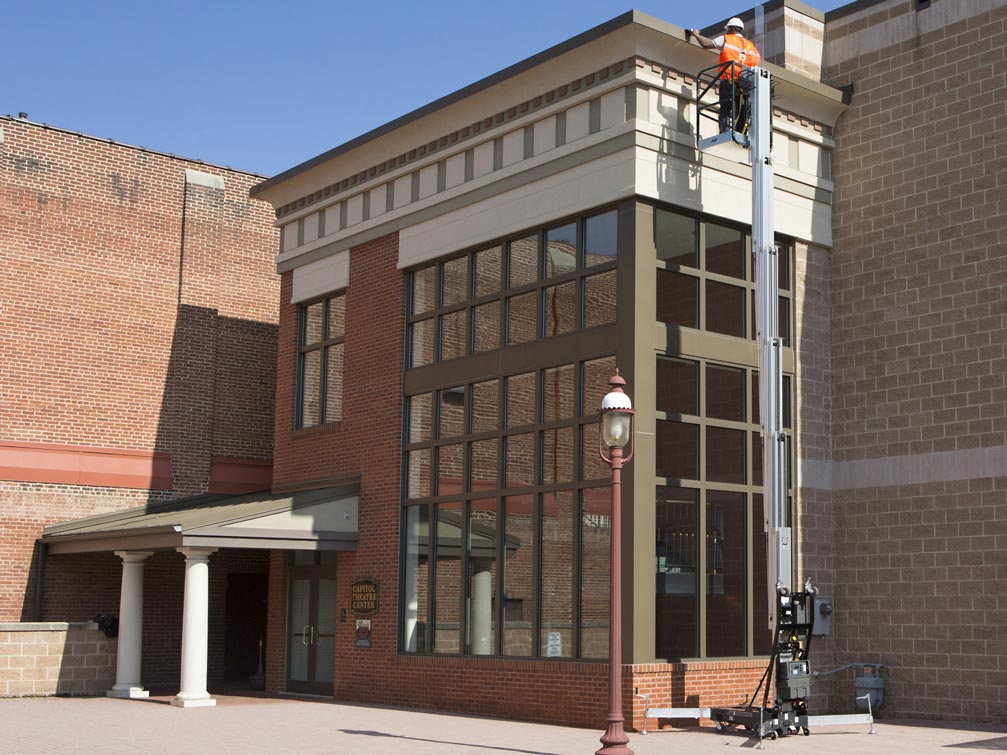

Learn how push-around JLG vertical mast lifts are great for general repair work, routine maintenance, managing inventory and even hanging holiday decorations
