Counter-Balanced Stacker
Loads too wide for other stackers in aisles too tight for sit-down forklifts. That’s the Counter-Balanced Stacker’s sweet spot. Makes sense, given that it’s only 34.1 inches wide. Makes even more sense when you factor in a lift height of up to 180 inches, and an ability to store and stack loads weighing up to 4,000 pounds.

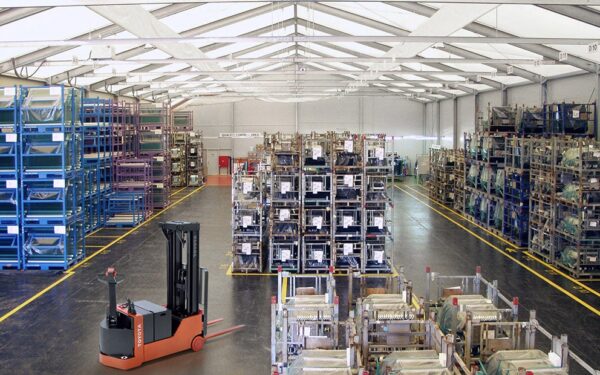

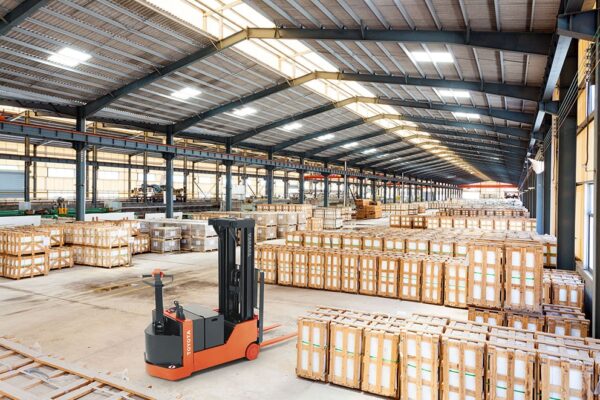

Toyota’s Counter-Balanced Electric Pallet Stacker is a thin, highly-versatile lift that compliments nearly any primarily indoor application. Balanced, like a traditional forklift and without baselegs, the Counter-Balanced Electric Stacker can fit into tight spaces. Extremely durable and budget friendly, the Toyota Counter-Balanced Stacker can help increase both your uptime and your bottom line.
- 2,000 – 4,000 lb. capacity
- 9 – 10 feet aisle accessibility
- Up to 180-inch lift height
- Heavy-duty transmission
- 24-volt motor
- 37 fpm lift speed
- Drive-in pallet access accelerates cycle times and improves overall productivity
- Easy-to-operate controls anchored by an ergonomic multifunction control handle
- Load-sensing torsion bar for easier steering and reduced operator fatigue
- Rugged construction for increased durability and reliability, and a longer useful lifespan
- Ability to handle heavy loads up to 4,000 pounds, quickly and efficiently
- High-visibility mast allows operator to clearly see fork tips and wider work area
- No tools required service door for easy access to all major components for inspection and maintenance
Specifications
| MODEL NUMBER | LOAD CAPACITY* (LBS.) | MAX. TRAVEL SPEED FULL LOAD (MPH) | MAX. LIFT SPEED FULL LOAD (FPM) | MAX. GRADEABILITY FULL LOAD (%) | BASIC RIGHT ANGLE STACK** (IN.) |
|---|---|---|---|---|---|
| 6BWC10 | 2,000 | 2.9 | 37 | 6 | 111 |
| 6BWC15 | 3,000 | 3 | 32 | 6 | 116 |
| 6BWC20 | 4,000 | 2.8 | 27 | 6 | 122 |
* Based on 24″ Load center
** Add load length and clearance
Details of specifications and equipment may change without notice.
Performance
- 24-volt electrical system
- UL-approved model type “E”
- MOSFET programmable controller
- 30-inch wide ITA class II hook-type carriage
- SB-175 red connector
- On/off key switch
Ergonomics / Operability
- Automatic resetting circuit breaker
- Reverse polarity protection contactor
- Mechanical drum brake
- Directional thumb control
- Direction reverse switch in control handle
- Power on self-test
- Emergency power disconnect switch
Safety
- Electric horn
- High-visibility mast
- Emergency power disconnect switch
Ease of Service
- Easy-access service cover
- Pressure-overload relief valve and lowering control fuses
Optional Equipment
- LED strobe light
- Battery discharge indicator and hour meter with lift interrupt
- Pallet centering guide
Contact Toyota Material Handling Solutions for a complete list of optional equipment; and compatibility conditions and restrictions.
| MODEL NUMBER | LOAD CAPACITY* (LBS.) | MAX. TRAVEL SPEED FULL LOAD (MPH) | MAX. LIFT SPEED FULL LOAD (FPM) | MAX. GRADEABILITY FULL LOAD (%) | BASIC RIGHT ANGLE STACK** (IN.) |
|---|---|---|---|---|---|
| 6BWC10 | 2,000 | 2.9 | 37 | 6 | 111 |
| 6BWC15 | 3,000 | 3 | 32 | 6 | 116 |
| 6BWC20 | 4,000 | 2.8 | 27 | 6 | 122 |
* Based on 24″ Load center
** Add load length and clearance
Details of specifications and equipment may change without notice.
- 24-volt electrical system
- UL-approved model type “E”
- MOSFET programmable controller
- 30-inch wide ITA class II hook-type carriage
- SB-175 red connector
- On/off key switch
- Automatic resetting circuit breaker
- Reverse polarity protection contactor
- Mechanical drum brake
- Directional thumb control
- Direction reverse switch in control handle
- Power on self-test
- Emergency power disconnect switch
- Electric horn
- High-visibility mast
- Emergency power disconnect switch
- Easy-access service cover
- Pressure-overload relief valve and lowering control fuses
- LED strobe light
- Battery discharge indicator and hour meter with lift interrupt
- Pallet centering guide
Contact Toyota Material Handling Solutions for a complete list of optional equipment; and compatibility conditions and restrictions.
Download the Counter-Balanced Stacker brochure
The Toyota Counter-Balanced Stacker’s SEM drive motor and fully-programmable drive system make it the ideal solution for your everyday material handling needs. Download the Counter-Balanced Stacker brochure to learn how it really stacks up.
