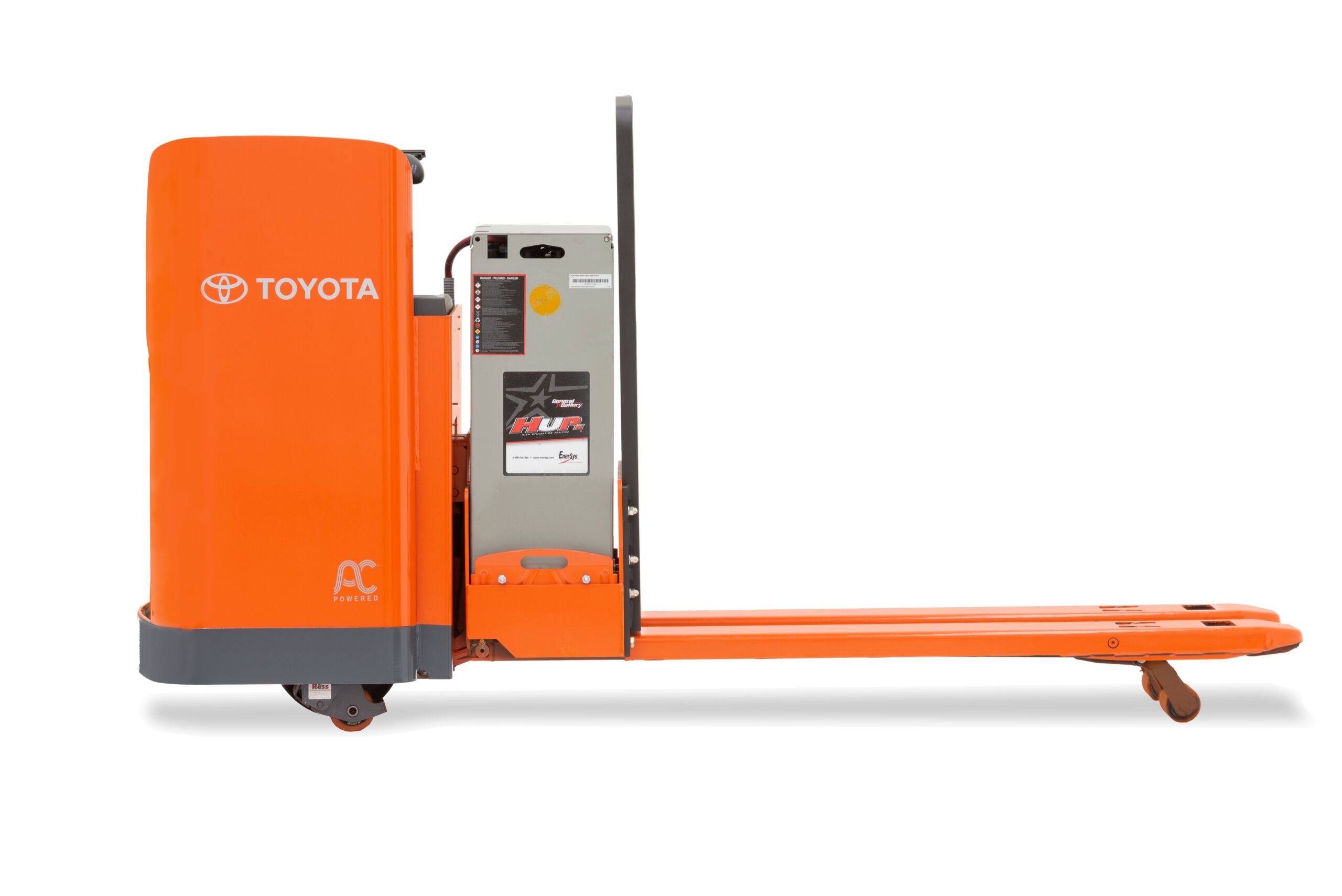

Enclosed End Rider Pallet Jack
The Enclosed End Rider is designed with innovative ergonomics to maximize operator efficiency and productivity. This unit makes traveling through your warehouse while loading and unloading products simple and easy. This lift comes equipped with electric power steering, which helps to lessen the amount of operational effort, leading to improved output and comfort shift with lower energy consumption. In addition, the enclosed rider limits travel speeds when the forks are lowered to ensure operator safety.
Toyota’s Enclosed End Rider makes traveling through your warehouse while loading and unloading products simple and easy. This Enclosed End Rider is the pallet- moving secret to productivity, efficiency, and uptime that you’ve been looking for. Designed with a steel- enforced undercarriage and stainless pins for reinforced strength to handle the heaviest of loads, the Enclosed End Rider is the perfect lift for delivering an impeccable performance so you can get the job done.
- 6,000 to 8,000 lb. capacity
- Programmable lift capacity
- 24 Volt Battery
- AC drive motor
- Ductile iron undercarriage
- 9.25-inch fork overall width
- Lift height travel interlock for operators to drive with the forks lifted by limiting travel speed when forks are lowered.
- Electric power steering decreases the amount of effort required to steer, increasing the operator's comfort, and auto steering automatically centers the steer tire on startup.
- The cold storage option protects components from condensation and cold temperatures.
- Reinforced steer ductile iron undercarriage adds strength throughout the underside of the unit for added rigidity.
- Lift and lower buttons give operators precise lift and lower control.
- The universal tapered forks option makes pallet exit and entry easier.
- AC drive motor serves for better acceleration, quiet operation, and overall smoothness of travel.
- Sidestance position enables operators to easily change direction and travel long runs shuttling pallets from dock to stock or vice versa.
- 10" low step height creates ease for operators when stepping on or off the floorspace.
- Auto slow down occurs when turning a corner making it easier to transport large loads when cornering.
Specifications
| MODEL NUMBER | LOAD CAPACITY* (LBS.) | MAX. TRAVEL SPEED FULL LOAD (MPH) | MAX. LIFT SPEED FULL LOAD (FPM) | MAX. GRADEABILITY FULL LOAD (%) | BASIC RIGHT ANGLE STACK** (IN.) |
|---|---|---|---|---|---|
| ER1-ES60 | 6,000 | 9.0 | N/A | 8 | 140.8 |
| ER1-ES80 | 8,000 | 9.0 | N/A | 8 | 140.8 |
* Based on 24″ Load center
** Add load length and clearance
Details of specifications and equipment may change without notice.
Performance
- AC drive system
- 24-volt electrical system
- Regenerative plugging
- Heavy duty spring loaded casters
- start up and run time diagnostics
- Electric power steering
Ergonomics / Operability
- Multifunction control handle with ergonomically angled hand grips
- Fork height travel interlock
- Programmable performance
- Cushioned operator backrest
Safety
- Low- profile operator presence pedal
- Speed reduction in turns
- Anti- roll back
- Automatic drive tire centering at startup
- Cushioned knee and hip pads
- Storage Tray
Ease of Service
- Hour meter indicator
- Automatic parking brake
- UL Type "E" Construction
Optional Equipment
- Single tier accessory bar
- Keyless on/off switch
- Various fork lengths
- Battery compartment rollers with dual sidegates
- Greasable steer bearing
- Full set greasable bushings
- Battery spacers
- Battery gate interlock
Contact Toyota Material Handling Solutions for a complete list of optional equipment; and compatibility conditions and restrictions.
| MODEL NUMBER | LOAD CAPACITY* (LBS.) | MAX. TRAVEL SPEED FULL LOAD (MPH) | MAX. LIFT SPEED FULL LOAD (FPM) | MAX. GRADEABILITY FULL LOAD (%) | BASIC RIGHT ANGLE STACK** (IN.) |
|---|---|---|---|---|---|
| ER1-ES60 | 6,000 | 9.0 | N/A | 8 | 140.8 |
| ER1-ES80 | 8,000 | 9.0 | N/A | 8 | 140.8 |
* Based on 24″ Load center
** Add load length and clearance
Details of specifications and equipment may change without notice.
- AC drive system
- 24-volt electrical system
- Regenerative plugging
- Heavy duty spring loaded casters
- start up and run time diagnostics
- Electric power steering
- Multifunction control handle with ergonomically angled hand grips
- Fork height travel interlock
- Programmable performance
- Cushioned operator backrest
- Low- profile operator presence pedal
- Speed reduction in turns
- Anti- roll back
- Automatic drive tire centering at startup
- Cushioned knee and hip pads
- Storage Tray
- Hour meter indicator
- Automatic parking brake
- UL Type "E" Construction
- Single tier accessory bar
- Keyless on/off switch
- Various fork lengths
- Battery compartment rollers with dual sidegates
- Greasable steer bearing
- Full set greasable bushings
- Battery spacers
- Battery gate interlock
Contact Toyota Material Handling Solutions for a complete list of optional equipment; and compatibility conditions and restrictions.
Download the Enclosed End Rider Pallet Jack brochure
Whether maneuvering loads or low-level order picking, the Toyota Enclosed End Rider Pallet Jack is a top performer. Download a brochure for more information on this productivity booster from Toyota.
